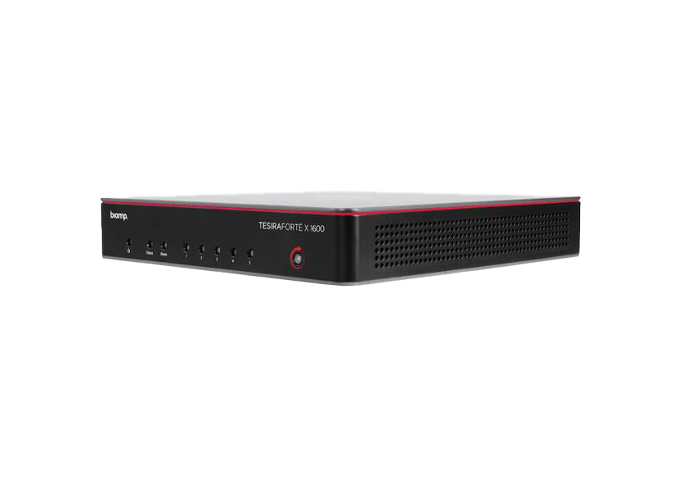

The TesiraFORTE X 1600 excels with its networked audio capabilities, supporting AVB/TSN for robust audio distribution. Its adaptable configuration accommodates diverse audio needs, from conferencing to live sound reinforcement. The device features sophisticated echo cancellation and noise reduction for clear communication. With PoE+ support, it simplifies power and data connections, reducing cable clutter. Additionally, its extensive control options, including programmable logic and GPIO, provide comprehensive customization for various applications.
| Size | 206(W) x 37.3(H) x 206(D) mm |
| Weight | 0.86kg |
| Accessories | C5E-10-P, C5E-25-P – 10ft and 25ft pre-terminated plenum rated Cat 5e cables RMX 100 – Universal Rack Shelf Plenum Box 12x12 – Chicago compliant plenum box PEX – 50 ft (15m) power extension cable |
| Ambient Operating Temperature Range | 0 ~ 40 °C |
| Humidity | 0~98%, non-condensing |
| Altitude | 0~6,600 feet (0~2000 Meters) MSL |
| Power Consumption | 100-240VAC 50/60Hz: < 150W |
| Phantom Power | +48VDC (7mA/input) |
| Amplifier | Maximum Number of AVB Channels: 128x128 Maximum Number of AVB Streams: 64x64 Maximum AVB Stream Passthrough: 150 Maximum Number of Dante Channels: 32x32 Maximum Number of Dante Flows: 32x32 16 channels of AEC, supporting up to 16 Parlé microphones |
| Audio Input Type | USB: Bit Depth: 16-bit / 24-bit Number of Channels: Up to 2 x 2 Sample Rate: 48kHz |
| Audio Impedance | (balanced): 8kΩ |
| Audio Input Gain Range | (6dB steps): 0-66dB |
| Audio Maximum Input | +24dBu |
| Audio Output Impedance | (balanced): 207Ω |
| Audio Maximum Output | (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu |
| Audio THD+N | (22Hz to 22kHz): 0dB gain, +4dBu input: < 0.006% 54dB gain, -50dBu input: < 0.040% |
| Audio Frequency Response | 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB |
| Audio EIN | (no weighting, 22Hz to 22kHz): < -125dBu |
| Audio Dynamic Range | (in presence of signal): 22Hz to 22kHz, 0dB gain: > 108dB |
| Audio Crosstalk | Channel to channel, 1 kHz: 0dB gain, +4dBu input: < -85dB 54dB gain, -50dBu input: < -75dB |
| Audio Sampling Rate | 48kHz |
| Audio A/D Converters | A/D - D/A Converters: 24-bit |
| Certified Solution | Microsoft Teams Certified; TAA Compliant |
| Certifications | FCC Part 15B (USA); Canada ICES-003 (A) / NMB-003 (A); CE marked (Europe); UL und C-UL listed (USA and Canada); RCM (Australia); RoHS Directive (Europe) |
