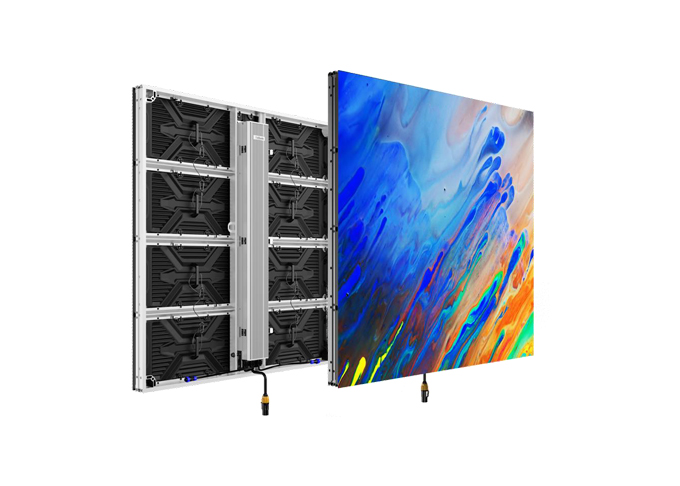

The Utile PL1 Outdoor LED Display offers exceptional performance with its super light and slim design, making it easy to install and transport. The energy-saving common cathode design reduces power consumption significantly. It supports hassle-free front and rear maintenance for quick and easy servicing. The display boasts a high contrast ratio of 10,000:1, ensuring vivid and clear images. With advanced heat dissipation, it maintains optimal performance even in challenging conditions. The innovative groove splicing design prevents light leakage, delivering seamless and consistent visuals ideal for impactful outdoor advertising.
| P6.25 | P7.81 | P10.4 | |
|---|---|---|---|
| Pixel Pitch | 6.25mm | 7.81mm | 10.41mm |
| LED Type | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Density | 25,600 pixels/m² | 16,384 pixels/m² | 9,216 pixels/m² |
| Pixels Per Panel | 160 x 160 | 128 x 128 | 96 x 96 |
| Panel Size | 1,000mm x 1,000mm x 106mm | 1,000mm x 1,000mm x 62mm | 1,000mm x 1,000mm x 62mm |
| Module Size | 500mm x 250mm | 500mm x 250mm | 500mm x 250mm |
| Weight | 23.5 kg/m² | 21.5 kg/m² | 21.5 kg/m² |
| Maintenance | Front & Rear | Front & Rear | Front & Rear |
| IP Grade | IP66(Front) / IP65(Rear) | IP66(Front) / IP65(Rear) | IP66(Front) / IP65(Rear) |
| Planeness | ≤0.4mm | ≤0.6mm | ≤0.8mm |
| Panel Material | Profile aluminum | Profile aluminum | Profile aluminum |
| Single-dot Brightness/Color Calibration | Support brightness and chroma | Support brightness and chroma | Support brightness and chroma |
| Brightness | 7,500 cd/m² | 7,500 cd/m² | 7,680 cd/m² |
| Color Temperature | 2,000 - 9,500K Adjustable | 2,000 - 9,500K Adjustable | 2,000 - 9,500K Adjustable |
| Viewing Angle (H/V) | 160° / 75° | 160° / 75° | 160° / 90° |
| Contrast | 6500:1 | 8000:1 | 10000:1 |
| Max. Power Consumption | 600 W/m² | 600 W/m² | 600 W/m² |
| Avg. Power Consumption | 200 W/m² | 200 W/m² | 200 W/m² |
| Power Voltage | AC100～240V | AC200～240V | AC200～240V |
| Frequency | 50~60 Hz | 50~60 Hz | 50~60 Hz |
| Refresh Rate (Hz) | 7,680 Hz | 7,680 Hz | 7,680 Hz |
| Processing Depth (bit) | 14bit | 14bit | 14bit |
| Life Time (Hours) | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Operating Temperature (℃) | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operating Humidity (RH%) | 10%~90%RH (No Condensation) | 10%~90%RH (No Condensation) | 10%~90%RH (No Condensation) |
| Storage Temperature (℃) | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ |
| Storage Humidity (RH%) | 10%~80%RH (No Condensation) | 10%~80%RH (No Condensation) | 10%~80%RH (No Condensation) |
