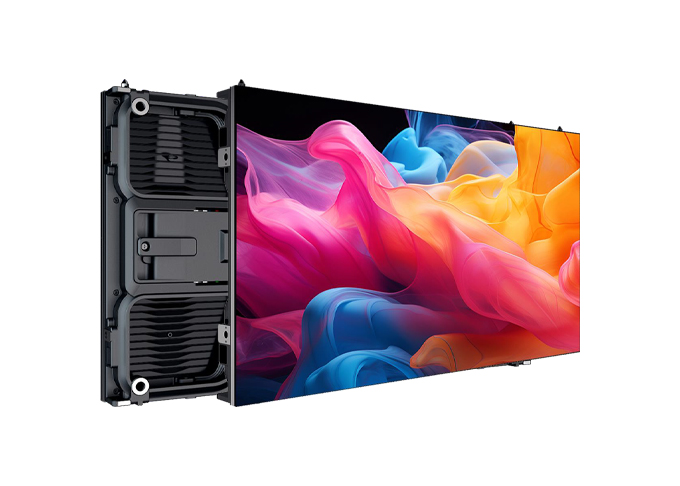

The ULW III LED Display offers exceptional features for high-performance visual experiences. It boasts ultra-thin panels for sleek installation and high-definition resolution for crystal-clear imagery. With seamless splicing, it ensures a continuous, gap-free display. The energy-efficient design reduces power consumption, making it eco-friendly. Additionally, its high contrast ratio delivers deep blacks and vibrant colors, enhancing image quality. The display’s advanced technology includes excellent heat dissipation and durable construction, ensuring longevity and reliability. Perfect for various applications, the ULW III LED Display combines outstanding performance with cutting-edge design.
| P0.9 | P1.2 | P1.5 | |
|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | MIP | MIP | MIP |
| Brightness | 600cd/m² | 800cd/m² | 600cd/m² | 800cd/m² | 600cd/m² | 800cd/m² |
| Pixel Density | 1137777 pixels/m² | 640000 pixels/m² | 409600 pixels/m² |
| Pixels Per Panel | 640 x 360 pixels | 480 x 270 pixels | 384 x 216 pixels |
| Pixels Per M odule | 160 x 360 pixels | 120 x 270 pixels | 96 x 216 pixels |
| Module Size | 150mm x 337.5mm | 150mm x 337.5mm | 150mm x 337.5mm |
| Panel Size | 600mm x 337.5mm x 47.8mm | 600mm x 337.5mm x 47.8mm | 600mm x 337.5mm x 47.8mm |
| Weight | 5kg/panel | 5kg/panel | 5kg/panel |
| Maintenance | Front & Rear | Front & Rear | Front & Rear |
| Ingress Protection | IP30 | IP30 | IP30 |
| Curve | 0°~+ 3° Concave | 0°~+ 5° Concave | 0°~+ 7° Concave |
| Planeness | ≤0.15 mm | ≤0.15 mm | ≤0.15 mm |
| Recommended Viewing Distance | ≥0.9m | ≥1.2m | ≥1.5m |
| Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Calibration | Support brightness and chroma | Support brightness and chroma | Support brightness and chroma |
| Color Temperature | 2,000K~9,500K Adjustable | 2,000K~9,500K Adjustable | 2,000K~9,500K Adjustable |
| Viewing Angle | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast Ratio | 11000:1 | 13500 :1 | 11000:1 | 13500 :1 | 11000:1 | 13500 :1 |
| Max. Power Consumption | 70±10% | 90±10%W/ panel | 60±10% | 75±10%W/ panel | 50±10% | 65±10%W/ panel |
| Avg. Power Consumption | 25±10% | 30±10%W/ panel | 20±10% | 25±10%W/ panel | 17±10% | 21±10%W/ panel |
| Input Voltage | AC100～240V | AC100～240V | AC100～240V |
| Processing Depth | 16 bit | 16 bit | 16 bit |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Video Frame Rate | 50 & 60Hz | 50 & 60Hz | 50 & 60Hz |
| Input Power Frequency | 50 ~ 60Hz | 50 ~ 60Hz | 50 ~ 60Hz |
| Life Time (Hours) | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Operating Temperature (℃) | -10℃~+40℃ | -10℃~+40℃ | -10℃~+40℃ |
| Operating Humidity (RH%) | 10~80%RH | 10~80%RH | 10~80%RH |
| Storage Temperature (℃) | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Storage Humidity (RH%) | 10~85%RH | 10~85%RH | 10~85%RH |
