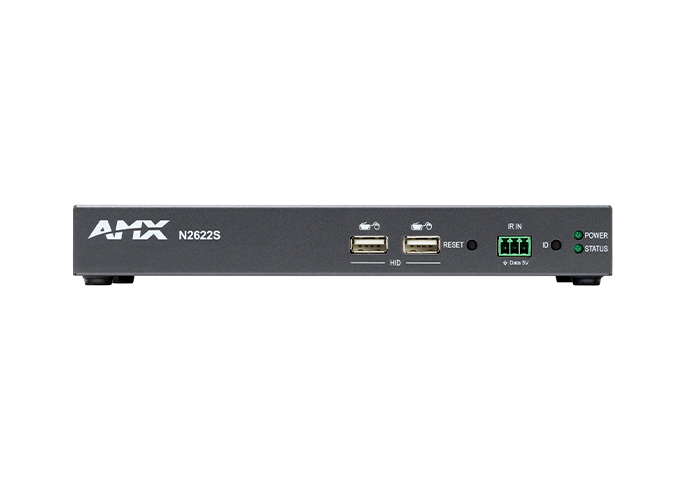

The NMX-DEC-N2622S supports Dante AV-A, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-A, the NMX-DEC-N2622S is compatible with Dante Controller, Dante Domain Manager, and Dante Director. All signal routing, configuration, and IT-level management for your audio and video devices can now be managed using the same tools.
Compatible encoders include the NMX-ENC-N2612S Encoder, NMX-ENC-N2612S-C Encoder Card and NMX-ENC-N2615-WP Encoder Wallplate. Alternatively, the NMX-DEC-N2622S can decode a Dante AV-A stream generated by any compatible streaming device or an H.26x stream generated 3rd-party devices, N3300 series encoders, N3000 series encoders, or the NMX-WP-N3510 Windowing Processor.
| Video Inputs | Network video over Ethernet via RJ45 port |
| Video Outputs | HDMI |
| Video Resolution Support | Supports most common resolutions up to 4096 x 2160 - Reference the user manual for specific resolution support. |
| Audio Inputs | Network PCM or Dante audio over Ethernet via RJ45, HDMI Loop-Out |
| Audio Outputs | Embedded audio on HDMI or Analog Stereo (Balanced) |
| Ports | +12V 2A DC power input, USB Type A USB 2.0 Device Port, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, (2) USB Type A HID Device port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel) |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | Up to ~85 BTU/hr |
| Dimensions (H x W x D) | 1 1/6" x 7 7/8" x 5" (26.6mm x 200mm x 127mm) |
| Product Weight | 2.16 lbs. (Approx. 0.97kg) |
