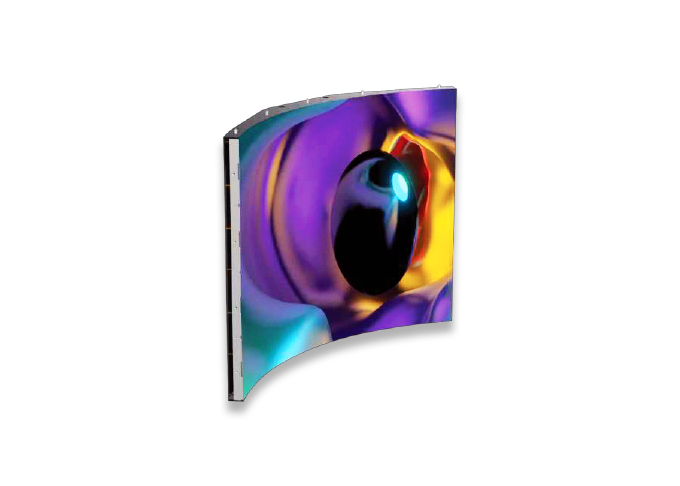

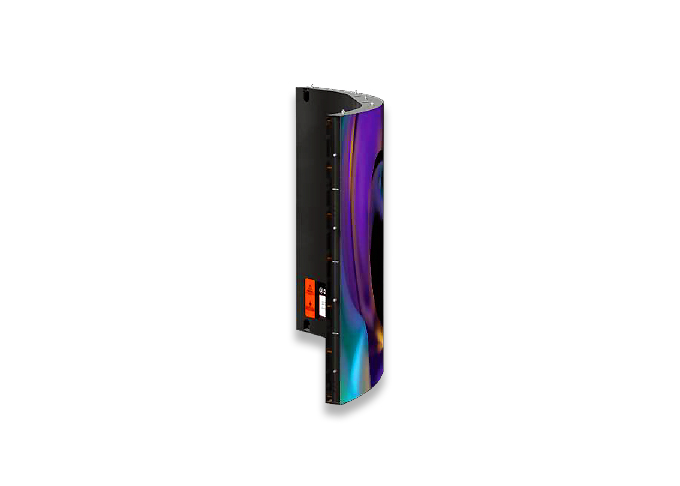

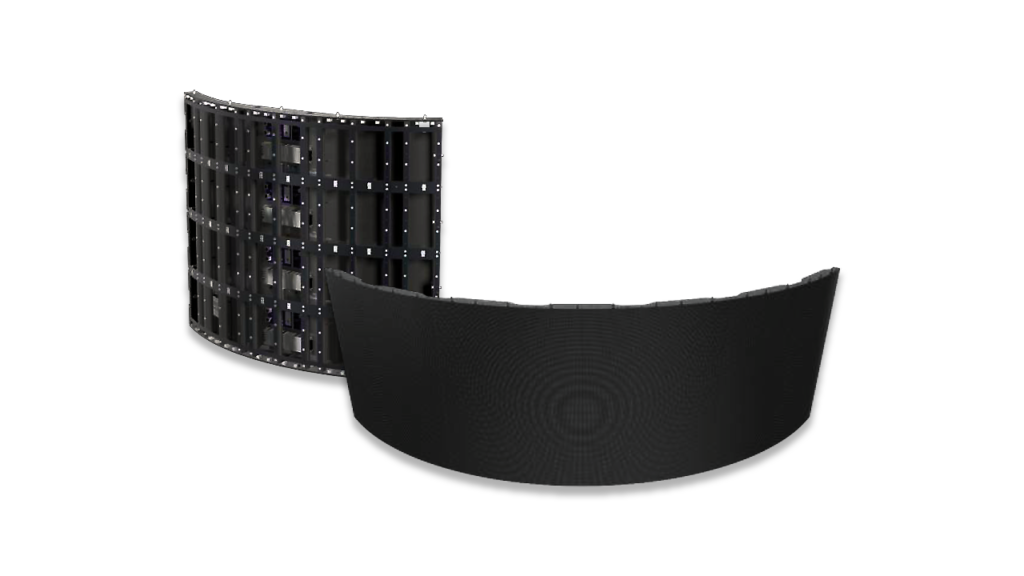

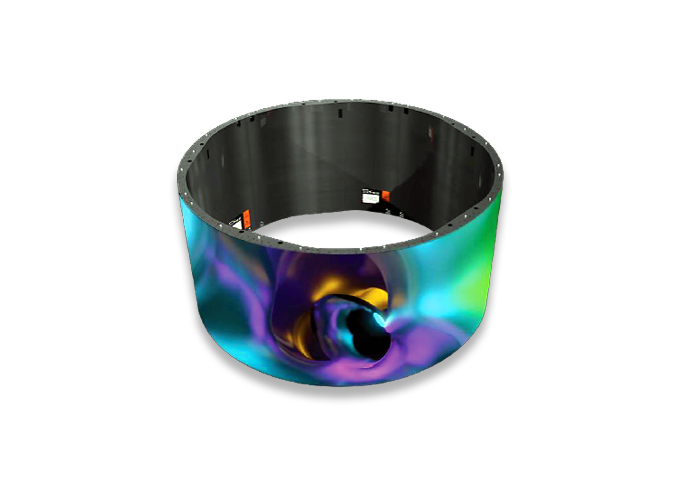

The UHF Series Flexible LED offers remarkable adaptability, making it perfect for creative installations. Its ultra-thin and lightweight design allows for easy handling and transport. The series boasts high brightness and contrast, ensuring clear and vibrant visuals even in bright environments. With easy-to-use installation mechanisms, it supports fast setup and maintenance, saving time and effort. Additionally, its robust construction ensures durability, making it a reliable choice for long-term use in various applications.
| P1.5 | P1.8 | P2.5 | P3.2 | P3.9 | |
|---|---|---|---|---|---|
| 像素間距 (mm) | 1.56mm | 1.85mm | 2.5mm | 3.2mm | 3.9mm |
| 像素配置 | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD |
| 像素密度 (像素/平方米) | 409,600pixels/m² | 291,600pixels/m² | 160,000pixels/m² | 97,344pixels/m² | 65,536pixels/m² |
| 像素密度 (像素/平方米) | 160° / 155° | 155° / 155° | 155° / 155° | 155° / 155° | 155° / 155° |
| 亮度 | 800cd/m² | 800 cd/m² | 800 cd/m² | 800 cd/m² | 800 cd/m² |
| 色溫 (K) | 2,000K~9,300K Adjustable | 2,000K~9,300K Adjustable | 2,000K~9,300K Adjustable | 2,000K~9,300K Adjustable | 2,000K~9,300K Adjustable |
| 處理深度 | 14bit | 14bit | 14bit | 14bit | 14bit |
| 刷新率 (Hz) | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| 最佳觀看距離 (m) | ≥1.5m | ≥1.8m | ≥2.5m | ≥3.2m | ≥3.9m |
| 模組尺寸 (像素)(寬 × 高) | 320 x 320 / 320 x 640 | 270 x 270 / 270 x 540 | 200 x 200 / 200 x 400 | 156 x 156 / 156 x 312 | 128 x 128 / 128 x 256 |
| 模組尺寸 (mm)(寬 × 高) | 500 x 500 / 500 x 1000 | 500 x 500 / 500 x 1000 | 500 x 500 / 500 x 1000 | 500 x 500 / 500 x 1000 | 500 x 500 / 500 x 1000 |
| 重量 (kg/m²) | 26 kg/ m² | 26 kg/ m² | 26 kg/ m² | 26 kg/ m² | 26 kg/ m² |
| 維護 | Front | Front | Front | Front | Front |
| 操作溫度 (℃) | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ |
| 操作濕度 (相對濕度%) | 10~80%RH | 10~80%RH | 10~80%RH | 10~80%RH | 10~80%RH |
| 壽命 (50% 亮度)(小時) | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| 最大功耗 (W/m²) | 500W/m² | 450W/m² | 500W/m² | 430W/m² | 420W/m² |
| 平均功耗 (W/m²) | 166W/m² | 150W/m² | 166W/m² | 143W/m² | 140W/m² |
